V750D
產品描述

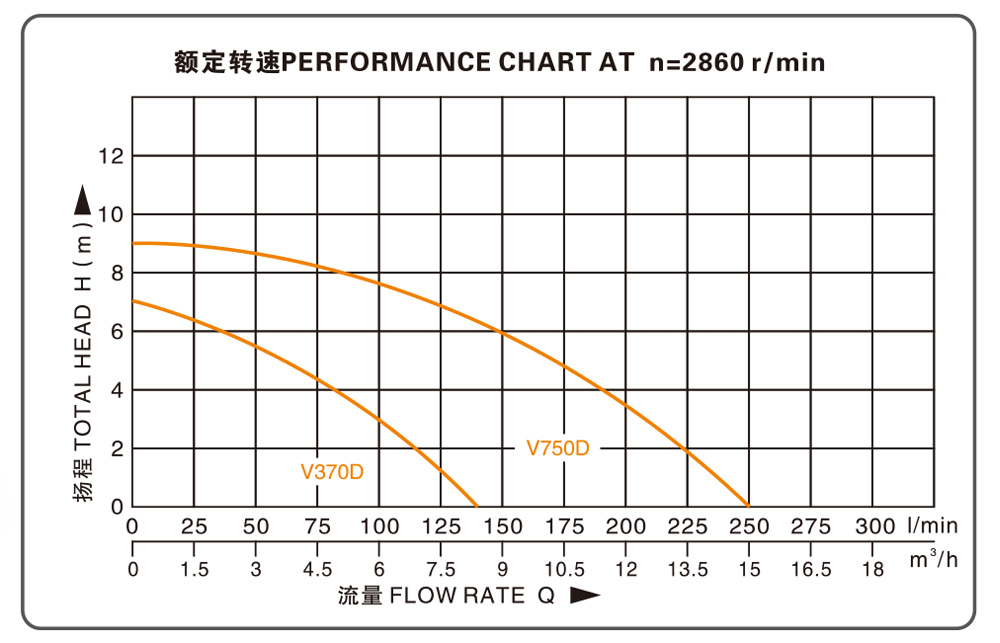

性能曲線 / Performance curve
用途與特點 / Function and Feature
V(WQ)型帶切割行水潛水泵是目前較理想的排污機具，其特點是在泵的進口處安裝高速旋轉切割系統，能有效地切斷被吸入含有長纖維及堅硬體的雜物，避免了葉輪被纏繞卡死的現象，使泵能正常運行。適用于公共衛生、工礦及家庭排污。配浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器，遇到過熱或過電流時會自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。( 可配三相電機)

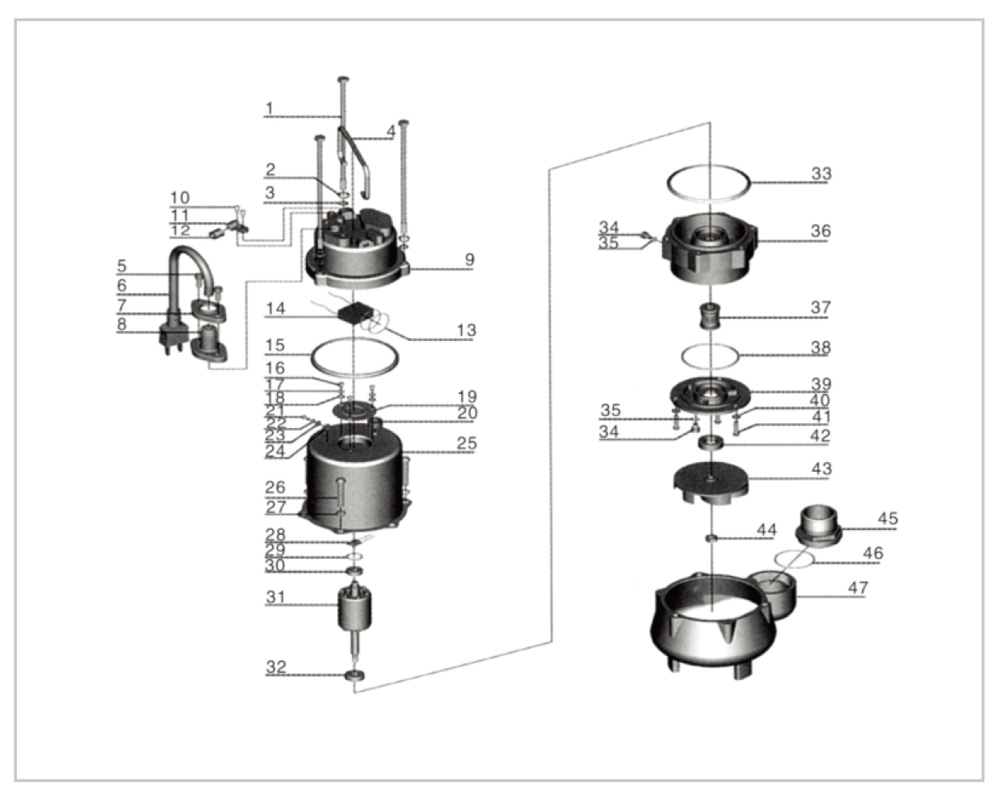

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)
| NO. | DESCRIPTION |
| 1 | Bolt |
| 2 | Stretching washer |
| 3 | Washer |
| 4 | Handle |
| 5 | Screw |
| 6 | Cable |
| 7 | Flange |
| 8 | Cable protector |
| 9 | Capacitor cover |
| 10 | Screw |
| 11 | Cable presser |
| 12 | Protector |
| 13 | "O" ring |
| 14 | Capacitor |
| 15 | Rubber washer |
| 16 | Screw |
| 17 | Stretching washer |
| 18 | Washer |
| 19 | Press plate |
| 20 | Line protector |
| 21 | Screw |
| 22 | Stretching washer |
| 23 | Washer |
| 24 | Nut |
| NO. | DESCRIPTION |
| 25 | Motor stator |
| 26 | Screw |
| 27 | Stretching washer |
| 28 | Thermal protector |
| 29 | Undulated washer |
| 30 | Ball bearing |
| 31 | Rotor |
| 32 | Ball bearing |
| 33 | Rubber washer |
| 34 | Screw |
| 35 | "O" ring |
| 36 | Connection part |
| 37 | Mechanical seal |
| 38 | "O" ring |
| 39 | Oil chamber cover |
| 40 | Washer |
| 41 | Screw |
| 42 | Oil seal |
| 43 | Impeller |
| 44 | Nut |
| 45 | Out-let connector |
| 46 | "O" ring |
| 47 | Pump body |
技術參數 / TECHNICAL DATA
| Model 型號 |
Power 功率 (W) |
Outlet Diameter 出水口徑 (mm) |
Voltage 電壓 (V) |
Max. Flow 最大流量 (L/min) |
Max. Head 最高揚程 (m) |
Weight 毛重 (kg) |
Packing 包裝尺寸 (cm) |
| V750D(F) | 750 | 50 | 220/380 | 250 | 9 | 18 | 26x20x49 |
型號后加“F”表示裝配浮球開關的水泵
